New QRS Orbit (PC Based Spirometer)

New QRS Orbit (PC Based Spirometer)

Regular price $ 1,225.00
Unit price  per

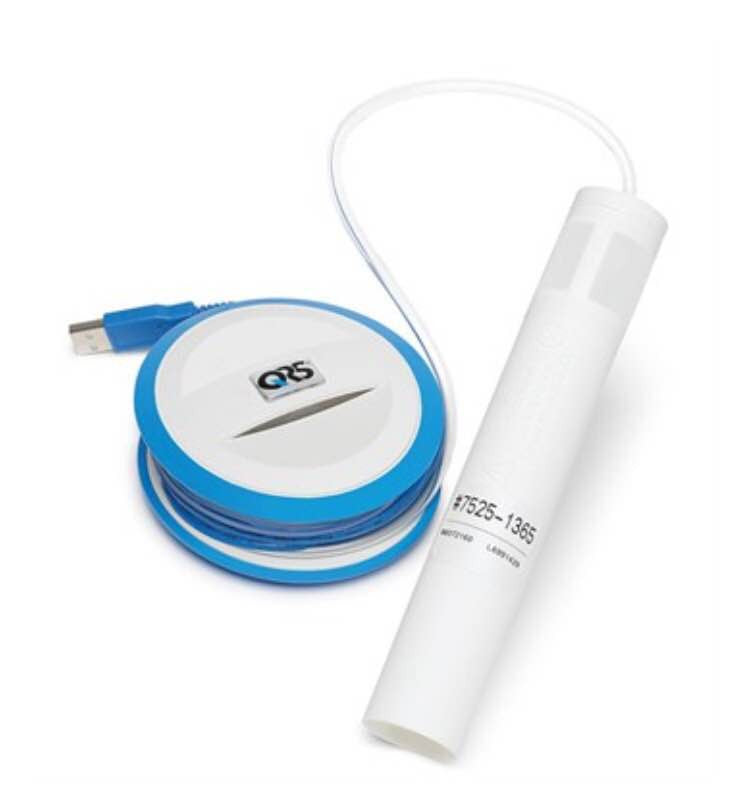

The Orbit portable spirometer features improved accuracy, portability and USB 2.0 connectivity. This next generation QRS Spirometer easily connects with your PC and rests on the table top.

The Orbit is a full-function portable spirometer which connects directly to your Personal Computer, laptop or tablet. This spirometer simplifies testing by eliminating calibration and sterilization with disposable nose-clips and pre-calibrated mouthpieces. The Orbit integrates with Office Medic and cooperates with your EMR system.


Measured Parameters – FVC, FEV0.5, FEV1, FEV6, FEV3, FEV1/FEV6, FEV1/FVC, FEV3/FVC, PEFR, PEFT, FEF25%, FEF50%, FEF75%, FEF25-75%, FIVC, FIV0.5, FIV1, FIV3, FIV1/FIVC, FIV3/FIVC, PIFR, FIF50%, FIF25-75%, FIF.2-1.2, FVC/FIVC, Extrapolated Volume, EOTV, FET, MVV, RR, MTV, SVC


Language Options – English, Spanish, French, German, Japanese, Italian, Portuguese

Standards – The Orbit provides effective diagnostic tests and meets the following Standards:

  •  American Thoracic Society (ATS/ERS) 2005 Standard
  •  British Thoracic Society (BTS) Standard
  •  National Institute for Health & Clinical Excellence (NICE) Guidelines

Lung Age Calculation – Lung age is calculated for patients ages 20-84. It is equal to the predicted FEV1 that matches the patient’s actual FEV1. Lung age may differ based on the predicted equation chosen.


Patented, Pre-Calibrated Mouthpiece – With the Orbit spirometer system, everything the patient touches is thrown away. No sterilization or calibration is necessary, saving time for nurses, therapists and physicians.



No Batteries Required – The Orbit draws its power from the PC it is connected to by USB port.



Weight: 0.5 lb.
Height: 4.3” x 3.7” x 1.7”
Range (BTPS): FLOW: ±14 liters/second
VOLUME: 0.5-8 liters
Accuracy (BTPS): FLOW: ±5% of indication or ±200 ml/sec, whichever is greater for FEF 25-75 and ±10% of indication or ±300 ml/s whichever is greater for PEF
VOLUME: ±3% of indication or ±50 ml, whichever is greater for FVC and FEV1; ±10% of indication or ±15 L/min, whichever is greater for MVV
Precision (BTPS): FLOW: 5% of indication or 150 ml/sec, whichever is greater for PEF
VOLUME: 3% of indication or 50 ml, whichever is greater for FVC and FEV1
Calibration: ATS 3-speed or standard calibration check
Predicted Normals:

Adult: Crapo, Cherniack, Morris, Knudson 1983, Roberts, NHANES III, ECC/ERS/Quanjer

Pediatric: HSU, Knudson 1983, Polgar, Warwick, NHANES III, Zapletal, Wang, Quanjer

Tests Performed: FVC, Pre/Post Testing, Flow Volume Loop, MVV, SVC
Measuring Time: FVC – 60 seconds
SVC – 60 seconds
MVV – 15 seconds
Power Supply: 5 Vdc ±5% 100 mA from the host PC USB Port
Operating Conditions:

Temperature: 15-40°C

Humidity: 10-90% (non-condensing)

Atmospheric Pressure: 700-1060 hPa

Storage Conditions:

Temperature: -15-50°C

Humidity: 90% max. (non-condensing)

Atmospheric Pressure: 700-1060 hPa
