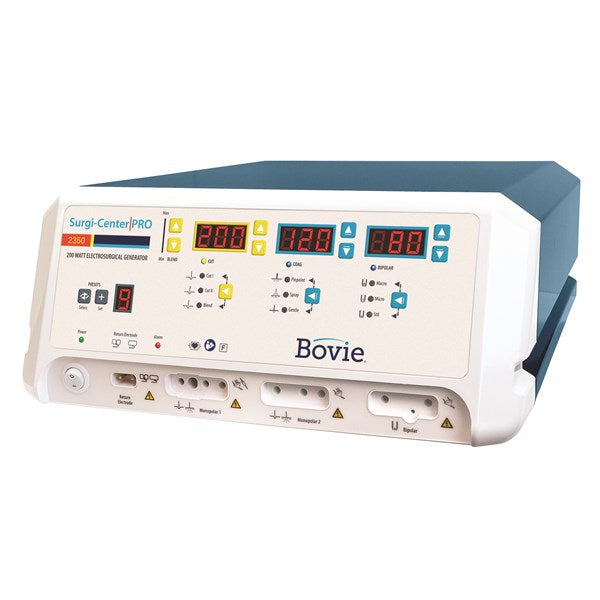

Bovie 2350 Surgi-Center Pro Electrosurgical Generator
The New Aaron® Surgi-Center|PRO is a 200 watt high power, operating room generator, by Bovie®. The unit incorporates the power and safety of a premium OR generator at a significant savings to the medical facility. The system delivers 12 monopolar and bipolar RF energy modalities to provide a high level of surgical precision. Engineered with the safety of the patient in mind, the Aaron® Surgi-Center|PRO includes technology such as Bovie NEM™ return split pad contact quality monitoring, Bovie FDFS™ tissue sensing technology, self-test circuits, as well as specialized modalities for laparoscopic and delicate procedures.
SPECIALIZED LAPAROSCOPIC MODE
Bovie’s Cut II is tailored specifically for Laparoscopic procedures. The mode offers a precisely managed cutting energy that limits output thereby minimizing the potential risk of capacitive coupling and alternate site burns.
DUAL MONOPOLAR SPRAY ACTIVATION
The SurgiCenter|PRO offers simultaneous activation in spray with audible activation tones. The simultaneous delivery produces equal and even power outputs in each accessory, for a safer delivery of dual monopolar energy.
ADJUSTABLE POWER DURING ACTIVATION
The power can be adjusted up or down in variable steps while performing a procedure, to increase procedural efficiency and provide the appropriate amount of power to the surgical site.
SURGICAL MEMORY TECHNOLOGY
The SurgiCenter | PRO recalls the last used power and mode. The surgeon can store 10 user-defined RF presets for easy recall.
PATIENT SAFETY FEATURES
- This return electrode contact quality monitoring system is designed to minimize the risk of patient burns at the return electrode site. This feature works in conjunction with disposable split return electrodes.
- Bovie FDFS™ – The tissue sensing technology measure tissue 5 million times a second and adjusts to varying impedances 5000 times a second for accurate energy delivery.
- Automatic system self-checks upon powering up the unit.
TECHNICAL SPECIFICATIONS
| MONOPOLAR | WATTS | VPEAK MAX VOLTAGE | CREST FACTOR (TYPICAL) | FREQUENCY (KHZ) |
|---|---|---|---|---|
| Cut I | 200 | 1000V | 1.7 ± 20% | 490 kHz ± 4.9 kHz |
| Cut II | 200 | 750V | 1.7 ± 20% | 490 kHz ± 4.9 kHz |
| Blend (1) | 200 | 1320V | 1.8 ± 20% | 490 kHz ± 4.9 kHz |
| Blend (2) | 200 | 1475V | 2.0 ± 20% | 490 kHz ± 4.9 kHz |
| Blend (3) | 200 | 1650V | 2.2 ± 20% | 490 kHz ± 4.9 kHz |
| Blend (4) | 200 | 1870V | 2.4 ± 20% | 490 kHz ± 4.9 kHz |
| Pinpoint Coagulation | 120 | 1800V | 3.1 ± 20% | 490 kHz ± 4.9 kHz |
| Spray Coagulation | 120 | 4000V | 6.0 ± 20% | 350 to 450 kHz |
| Gentle Coagulation | 120 | 450V | 1.6 ± 20% | 490 kHz ± 4.9 kHz |
| BIPOLAR | WATTS | VPEAK MAX VOLTAGE | CREST FACTOR (TYPICAL) | FREQUENCY (KHZ) |
|---|---|---|---|---|
| Macro Bipolar | 80 | 600V | 1.5 ± 20% | 490 kHz ± 4.9 kHz |
| Micro Bipolar | 80 | 500V | 1.5 ± 20% | 490 kHz ± 4.9 kHz |
| Standard Bipolar | 50 | 250V | 1.5 ± 20% | 490 kHz ± 4.9 kHz |
| Cooling System | Passive Cooling |
|---|---|
| Technology | Isolated RF Output |
| Audible/Visible Output Meter | Yes |
| Pre-set Feature | Yes |
| Monopolar HP Ports | 2 Port(s) |
| Connector Ports/Power Switch | White |
| Warranty | 4 years |
| Contact Monitoring Systems | Bovie NEM™ |
| Width | 37.5 cm (14.75 in) |
| Contact Monitoring Systems Range/Trip Point | 10 ohms or less over entire operating range (10C° to 40°C) |
| Dual Activation Tone Alert | Yes |
| Depth | 46 cm (18.1 in) |
| Weight | < 9.07 kg (<20 lbs) |
| Height | 16.5 cm (6.5 in) |
INCLUDED ACCESSORIES
|
SKU
|
Name
|
Default Quantity
|
|---|---|---|
| A2350 | Bovie® Surgi-Center Pro High Frequency Electrosurgical Generator | 1 |
| 09-039-001 | Spare Part, Black Power Cord 15' Domestic, For A1250U, IDS-210/A3350, IDS-210/A2350, IDS300/A3250 | 1 |
| 09-035-001 | Spare Part, Black Power Cord 15ft European, For A1250U | 1 |
The Bovie Surgi-Center|PRO is supported by Bovie’s unprecedented 4-year standard warranty.
Current Lead time is estimated 7-10 Business days to ship from manufacturer
