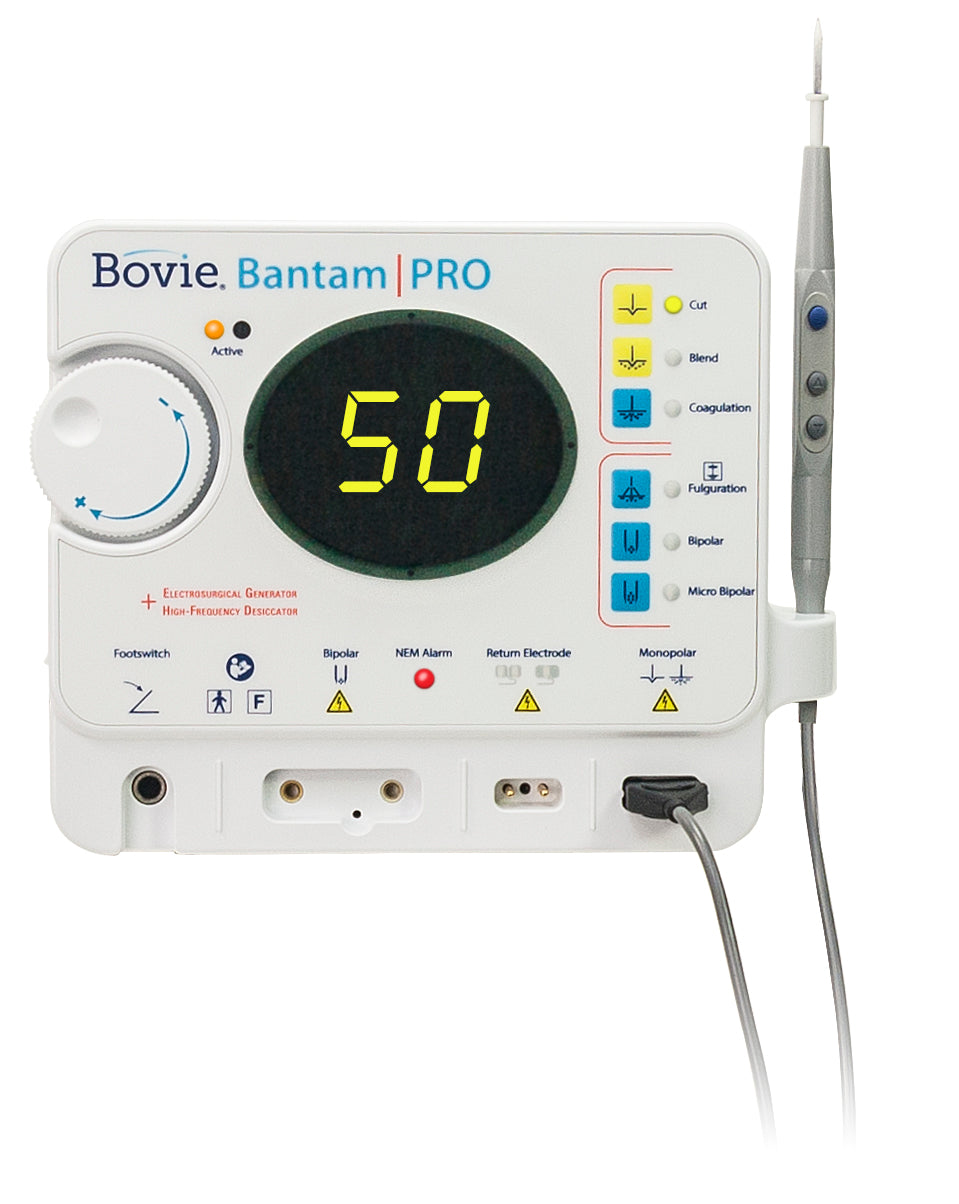

Bovie 952 Bantam | PRO
The New Bovie Bantam | PRO, A952 is a High Frequency Desiccator with cutting ability. You might call it a split personality. One half of the unit is a high frequency desiccator, an upgrade to our very popular Aaron® 940. The other half is a Bovie Generator, giving you 50 watts of cutting power and coag capabilities – plenty of power for most cutting procedure performed in the doctor’s office.
The Bovie Bantam | PRO, A952 is supported by Bovie’s unprecedented 4-year standard warranty.
Current Lead time is estimated 7-10 Business days to ship from manufacturer
TECHNICAL SPECIFICATIONS
| MONOPOLAR | WATTS | VPEAK MAX VOLTAGE | CREST FACTOR (TYPICAL) | FREQUENCY (KHZ) |
|---|---|---|---|---|
| Cut I | 50 | 1600V | 2.2 ± 20% | 343kHz ± 10% |
| Blend | 50 | 2100V | 3.5 ± 20% | 368 kHz ± 10% |
| Coagulation | 50 | 2900V | 5.2 ± 20% | 340 kHz ± 20% |
| Spray Coagulation | 40 | 6300V | 9.5 ± 20% | 410 kHz ± 10% |
| MONOPOLAR | WATTS | VPEAK MAX VOLTAGE | CREST FACTOR (TYPICAL) | FREQUENCY (KHZ) |
|---|---|---|---|---|
| Bipolar | 40 | 950V | 5.5 ± 20% | 368kHz ± 10% |
| Micro Bipolar | 40 | 300V | 2.6 ± 20% | 338 kHz ± 10% |
| Line Frequency | 50-60 Hz |
|---|---|
| Output Frequency | 304-451 kHz |
| Line Voltage | 100-240 VAC |
| Cooling System | Passive Cooling |
| Technology | Isolated RF Output |
| Monopolar HP Ports | 1 Port(s) |
| Warranty | 4 years |
| Width | 228 mm (8.98 in.) |
| Range Trip Point | (10C° to 40°C) |
| Depth | 105 mm (4.13 in.) |
| Weight | < 2.26 kg (< 5 lbs.) |
| Height | 188 mm (7.40 in.) |
| Certifications | CE 0413 |
INCLUDED ACCESSORIES
|
SKU
|
Name
|
Default Quantity
|
|---|---|---|
| A952 | Electrosurgical Generator + High Frequency Desiccator | 1 |
| A902 | Autoclavable 3 Button Pencil | 1 |
| A910 | Handpiece Sheath | 2 |
| A910ST | Handpiece Sheath With Card | 2 |
| ES01 | Blade Standard | 3 |
| ES02 | Needle Standard | 1 |
| ES20 | Ball Electrode 3/16" | 1 |
| A804 | Electrode Sharp Tip Non-Sterile | 5 |
| A806 | Electrode Blunt Angled Blade Non-Sterile | 5 |
| A806DE | Derm-Elite Dermal Tip Electrode Non-Sterile | 2 |
| A805 | Electrode Sharp Tip Sterile | 2 |
| A807 | Electrode Blunt Angled Blade Sterile | 2 |
| A807DE | Derm-Elite Dermal Tip Electrode Sterile | 2 |
| A1252C | Reusable Grounding Cable | 2 |
| ESRE | Return Split Pads Disposable | 5 |
| A837 | Wall Mount Kit A837 | 1 |
| 09-064-001 | Power cord for A942/A952 | 1 |
| 09-035-001 | Black power cord for 220V version | 1 |
