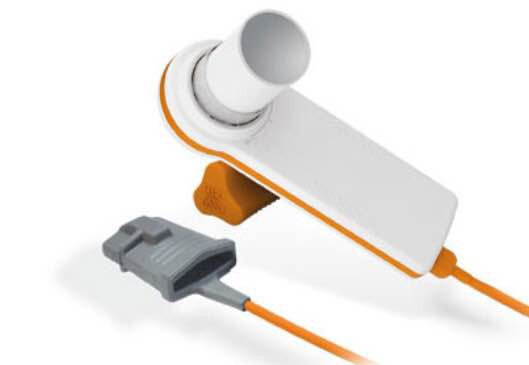

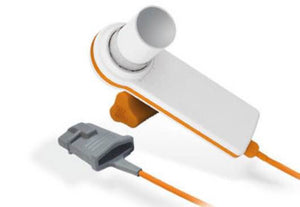

New MiniSpir Spirometer (PC Based Spirometer)
New MiniSpir Spirometer (PC Based Spirometer)

New MiniSpir Spirometer (PC Based Spirometer)

Regular price $ 1,020.00
Unit price  per

Minispir® New
Plugs directly into the USB socket on your PC.
Real time Flow/Volume loops and Volume/time curves with PRE/POST comparison.
Advanced spirometry test interpretation.
Pediatric incentive animations.
Lung age estimation (ELA).
Methacoline and Mannitol provocation test with FEV1 dose-response curve.
Temperature sensor for BTPS conversion.


WinspiroPRO Software always included
Spirometer

Technical specifications:
Temperature sensor: semiconductor (0-45°C)
Flow sensor: bi-directional digital turbine
Flow range: ± 16 L/s
Volume accuracy: ± 3% or 50 mL
Flow accuracy: ± 5% or 200 mL/s
Dynamic resistance at 12 L/s: <0.5 cmH2O/L/s
Communication port: USB
Power Supply: line powered from USB port
Dimensions: 142x49.7x26 mm
Weight: 2.5 Oz (65 gram)

Measured parameters:
FVC, FEV1, FEV1/FVC%, FEV3, FEV3/FVC%, FEV6, FEV1/FEV6%, PEF, FEF25%, FEF50%, FEF75%, FEF25-75%, FET, Vext, Lung Age, FIVC, FIV1, FIV1/FIVC%, PIF, VC, IVC, IC, ERV, FEV1/VC%, VT, VE, Rf, ti, te, ti/t-tot, VT/ti, MVV
