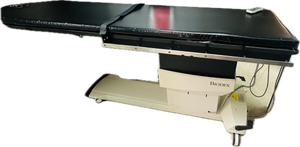

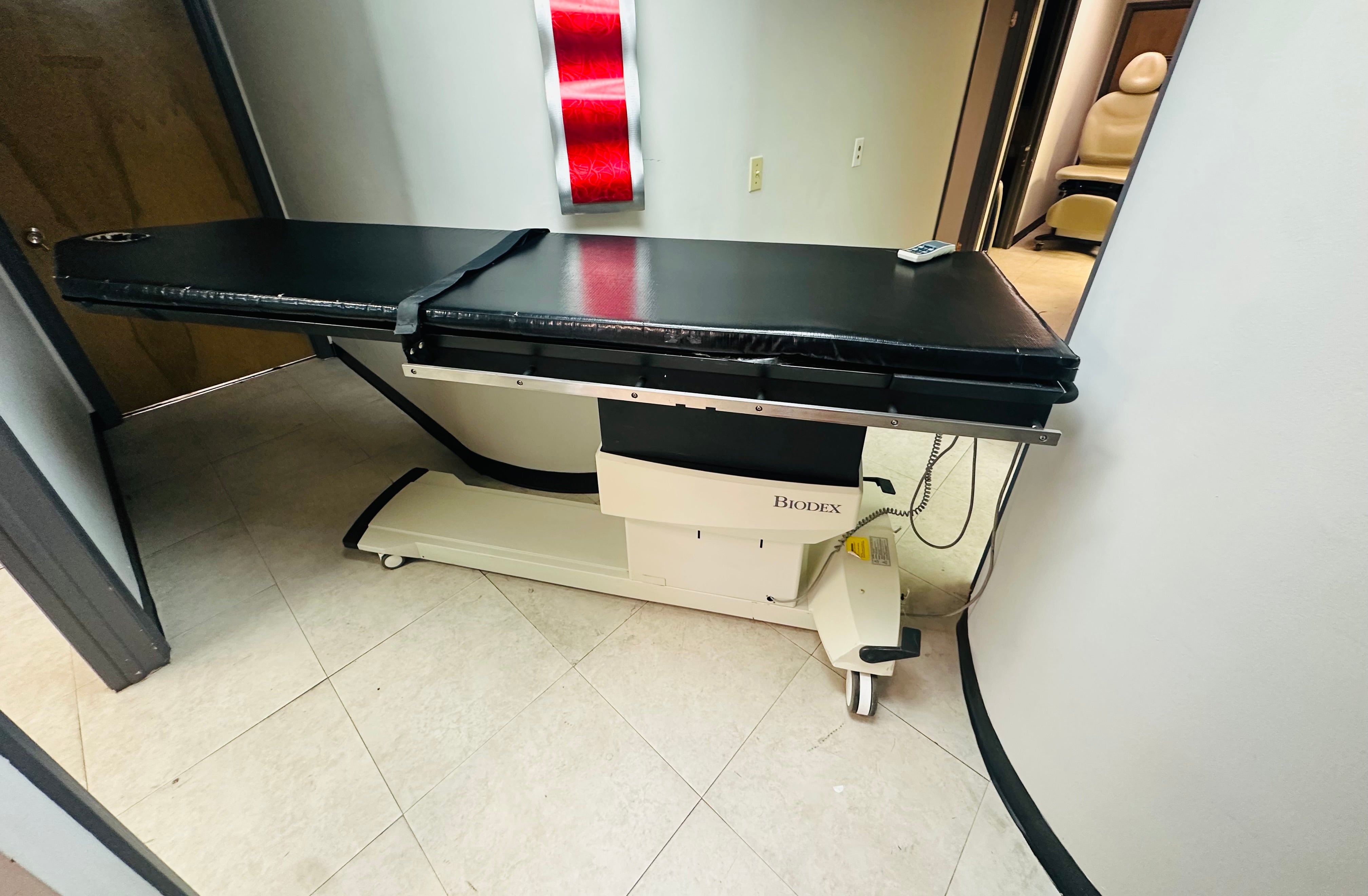

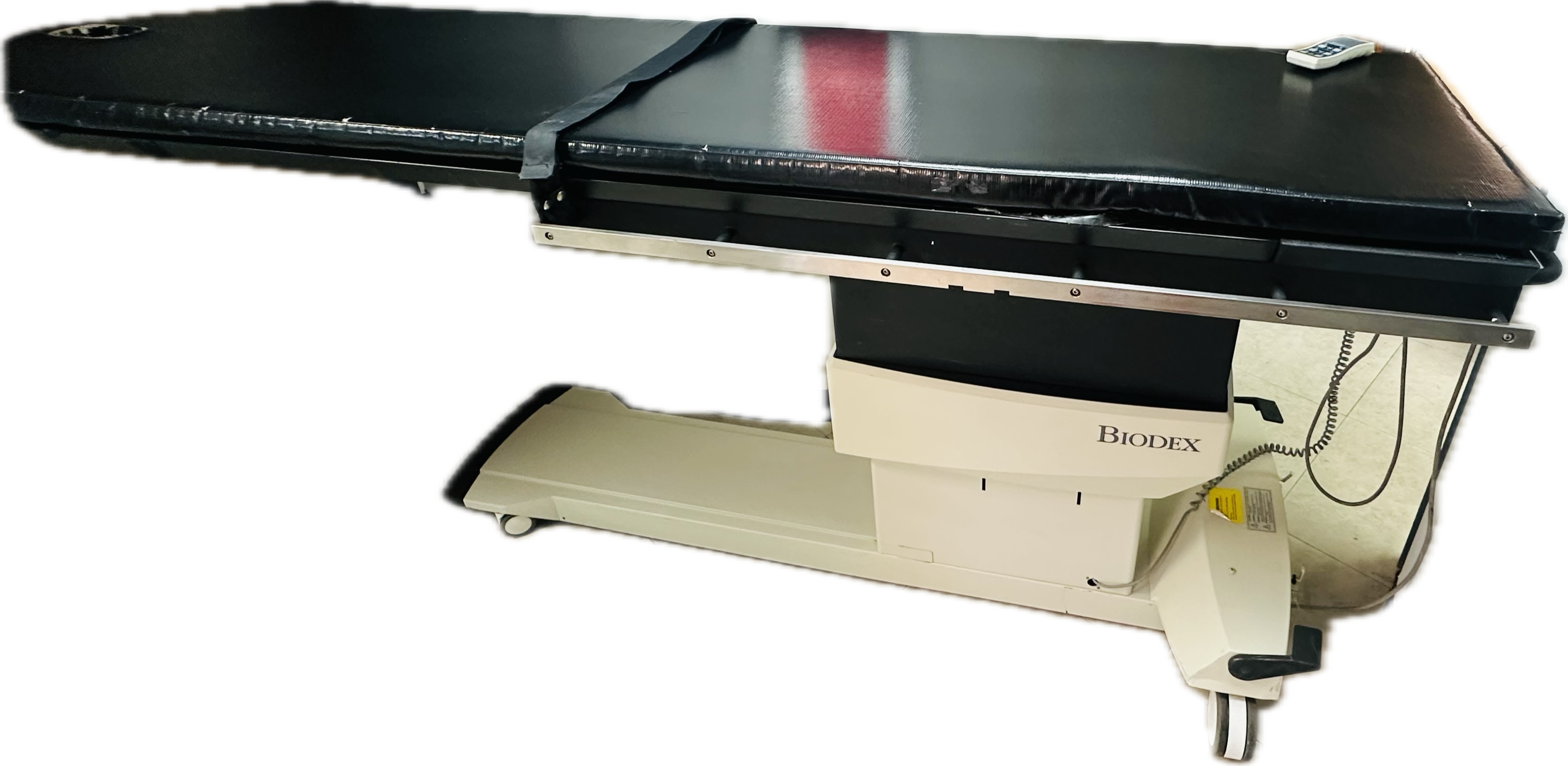

The Surgical C-Arm Table – 846 is designed for procedures where stability, access and precise, quiet, vibration-free positioning are essential. A contoured design accommodates portable or ceiling-suspended C-Arms. The standard contoured top allows ample workspace for anesthesiologists, yet the narrowness required for cervical procedures.
Its large radiolucent area, motorized actuation of height, and free-float tabletop make it ideal for pain care, cardiovascular and interventional radiology applications. The radiolucent area is free of cross members, allowing full fluoroscopic visualization and unobstructed C-Arm positioning. Functional design provides complete access with reduced radiation exposure to clinicians. The contoured tabletop features a face cutout for comfortable prone positioning.
Control Made Easy

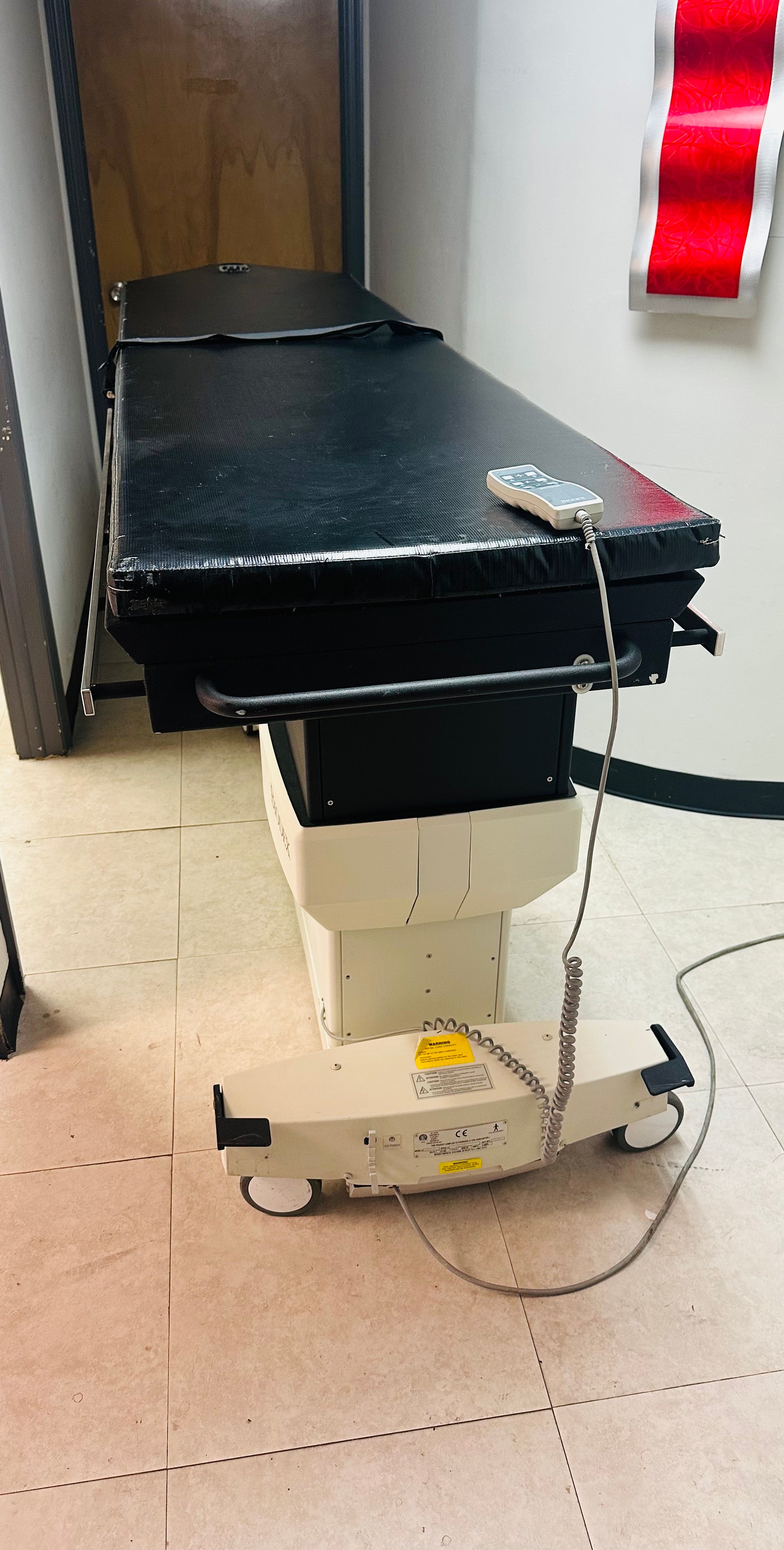

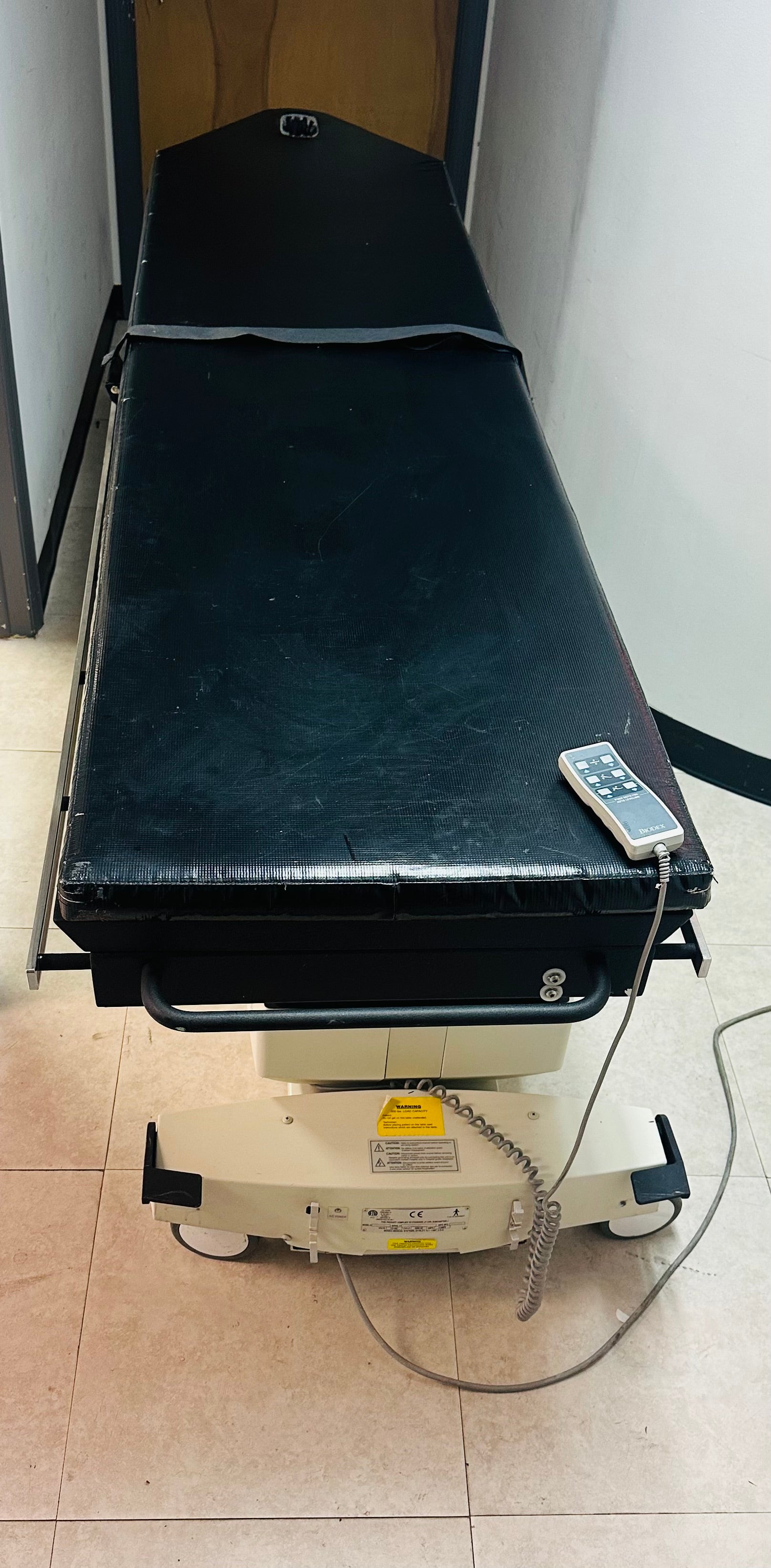

The portable, hand-held controller offers the freedom to adjust height from any point around the table. Hand control optimizes command of the SmoothGlide™ free-float tabletop.
Free-float tabletop design with quick and comfortable patient positioning at an affordable price.
-

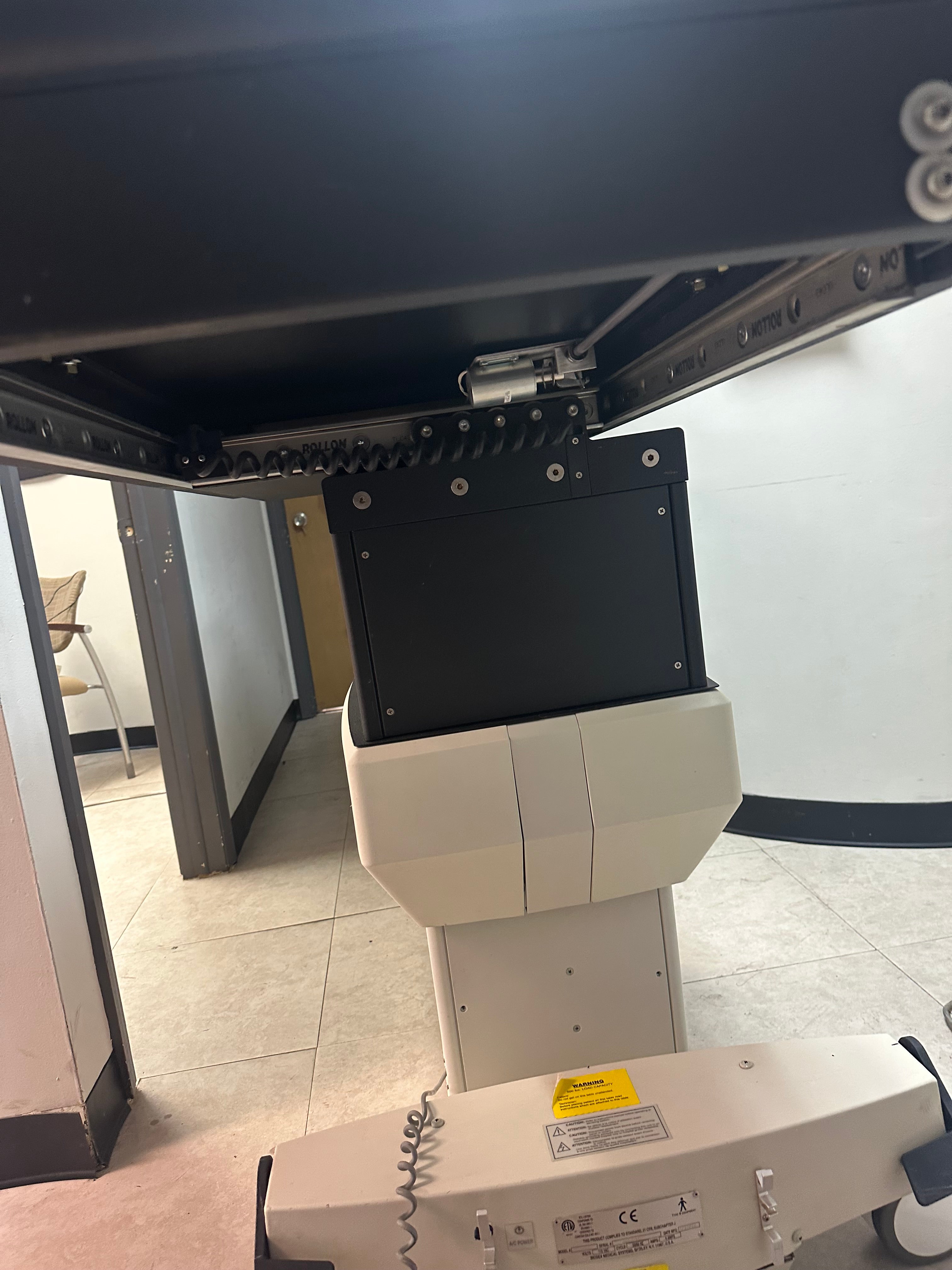

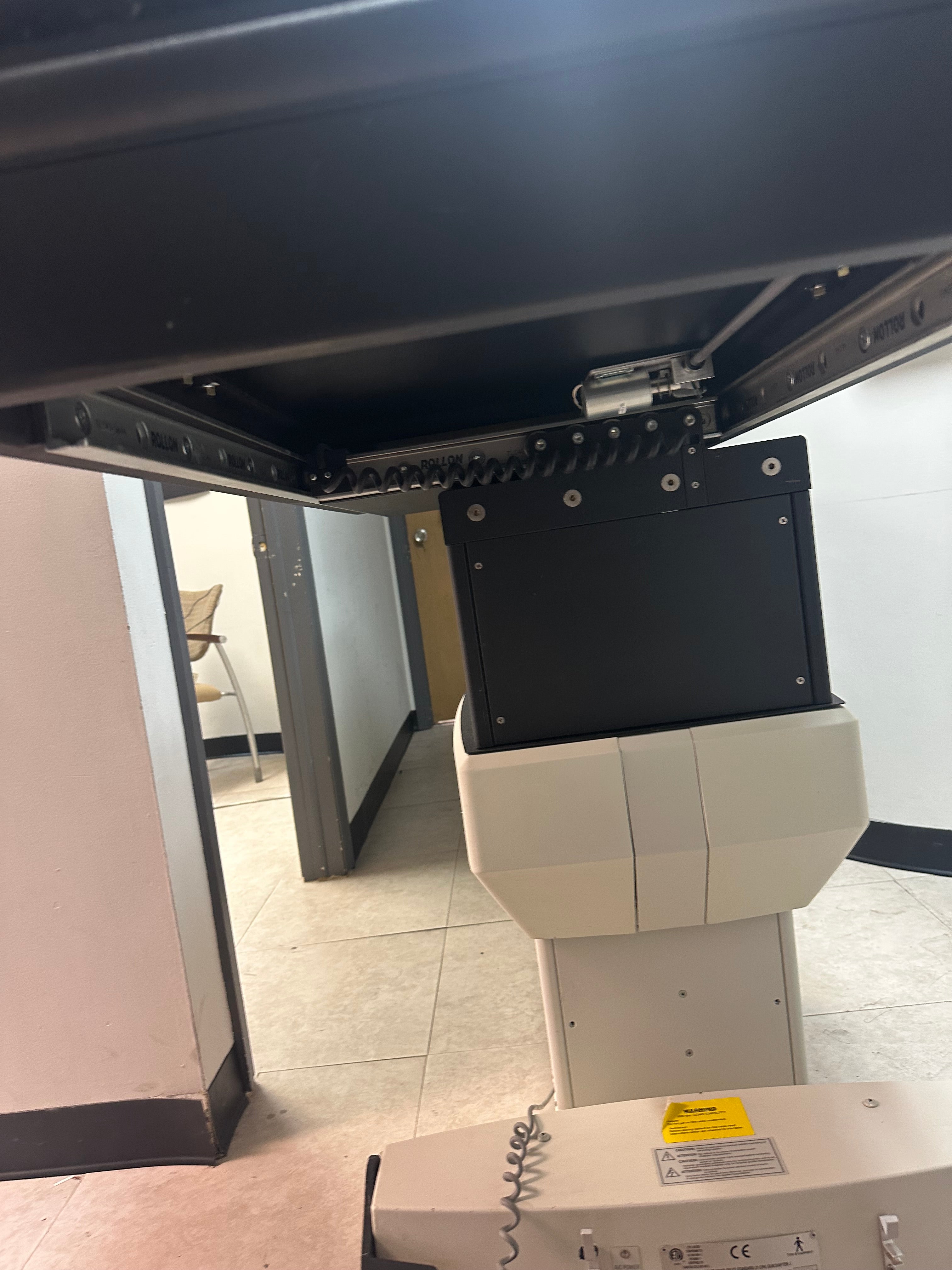

Free-Float Tabletop – With specially-designed SmoothGlide™ movement
-

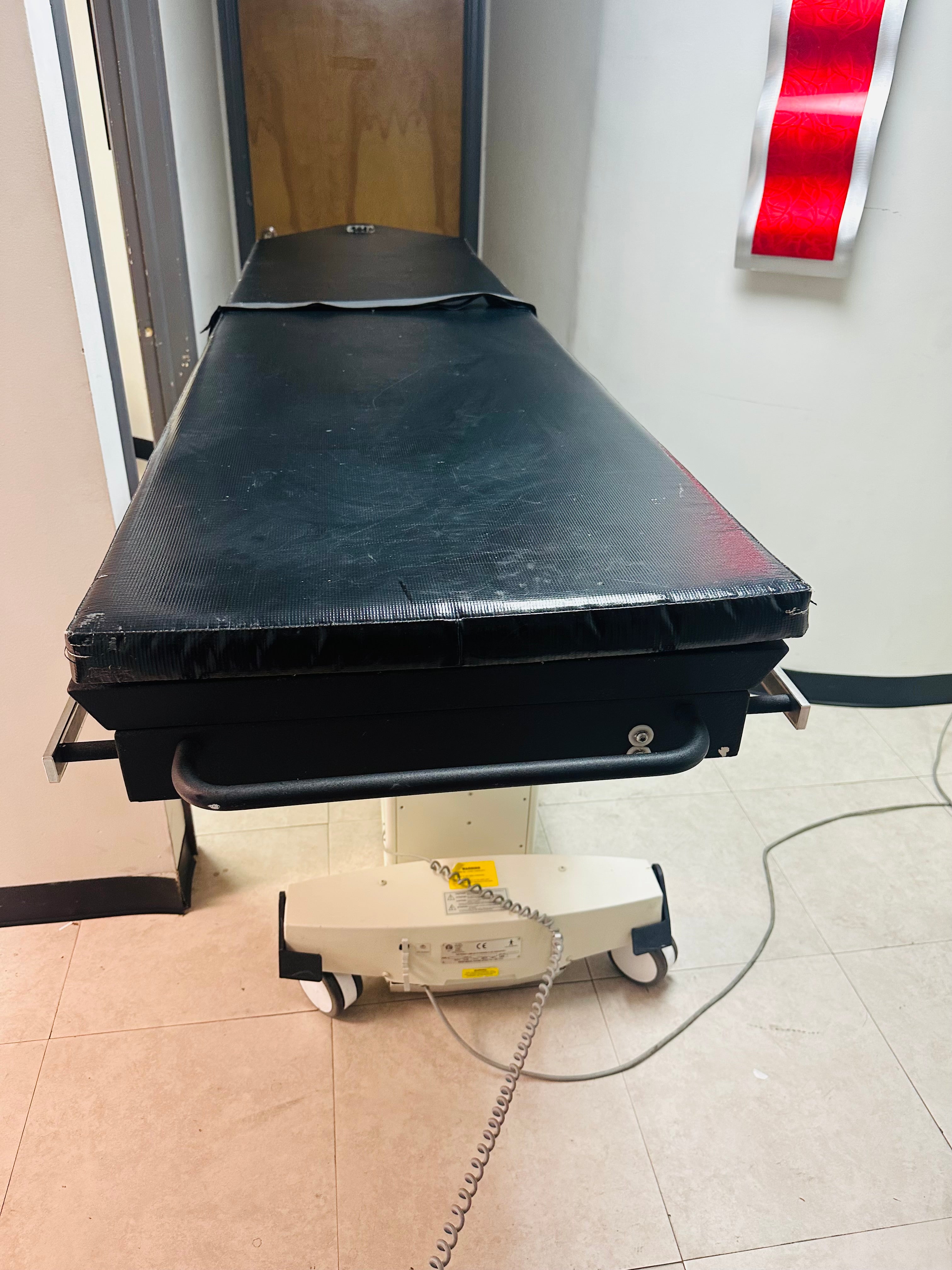

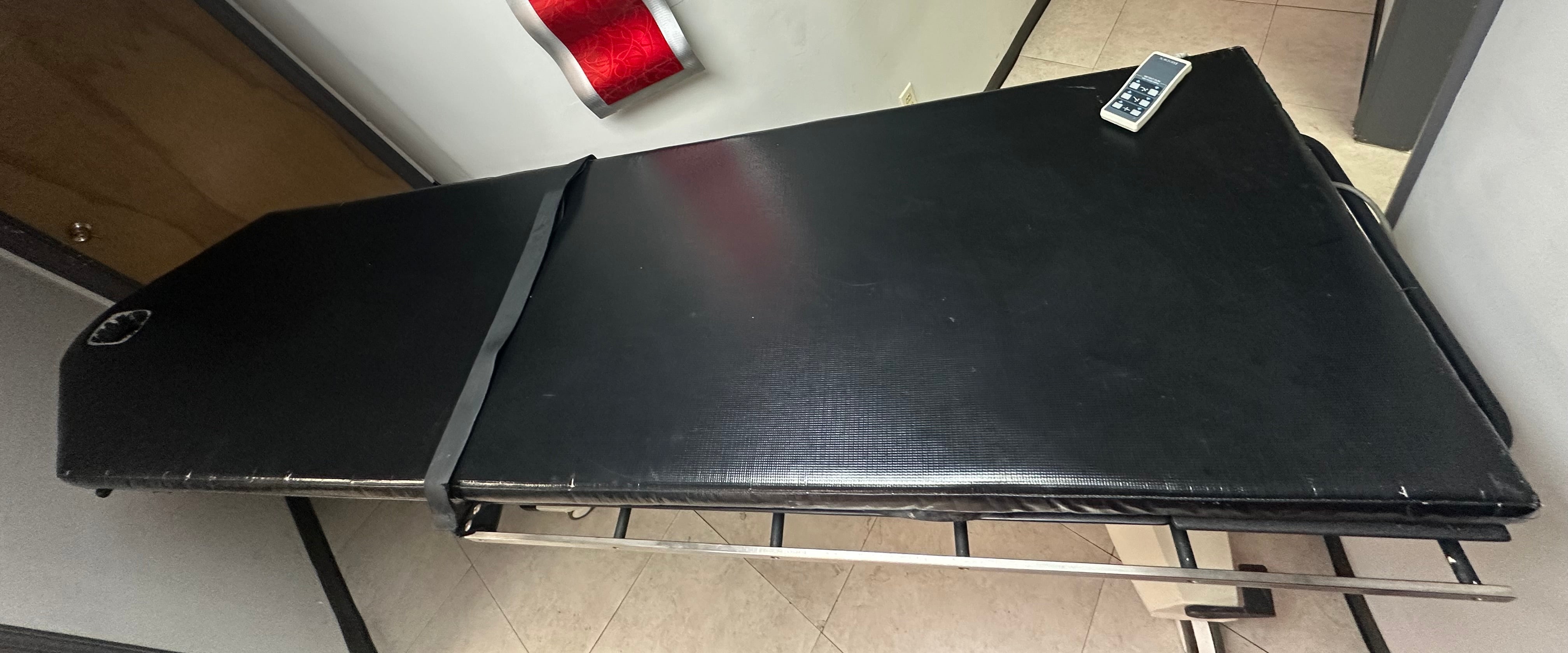

Contoured Tabletop – Features a face cutout for comfortable prone positioning
-
Tabletop Motion – Expansive head-to-toe, 35"
-
Radiolucent Area – Extra-large, 75"
-
High-Speed Actuator – For quick vertical movement
-
Hand Control – Ergonomic, for free-float motion
-

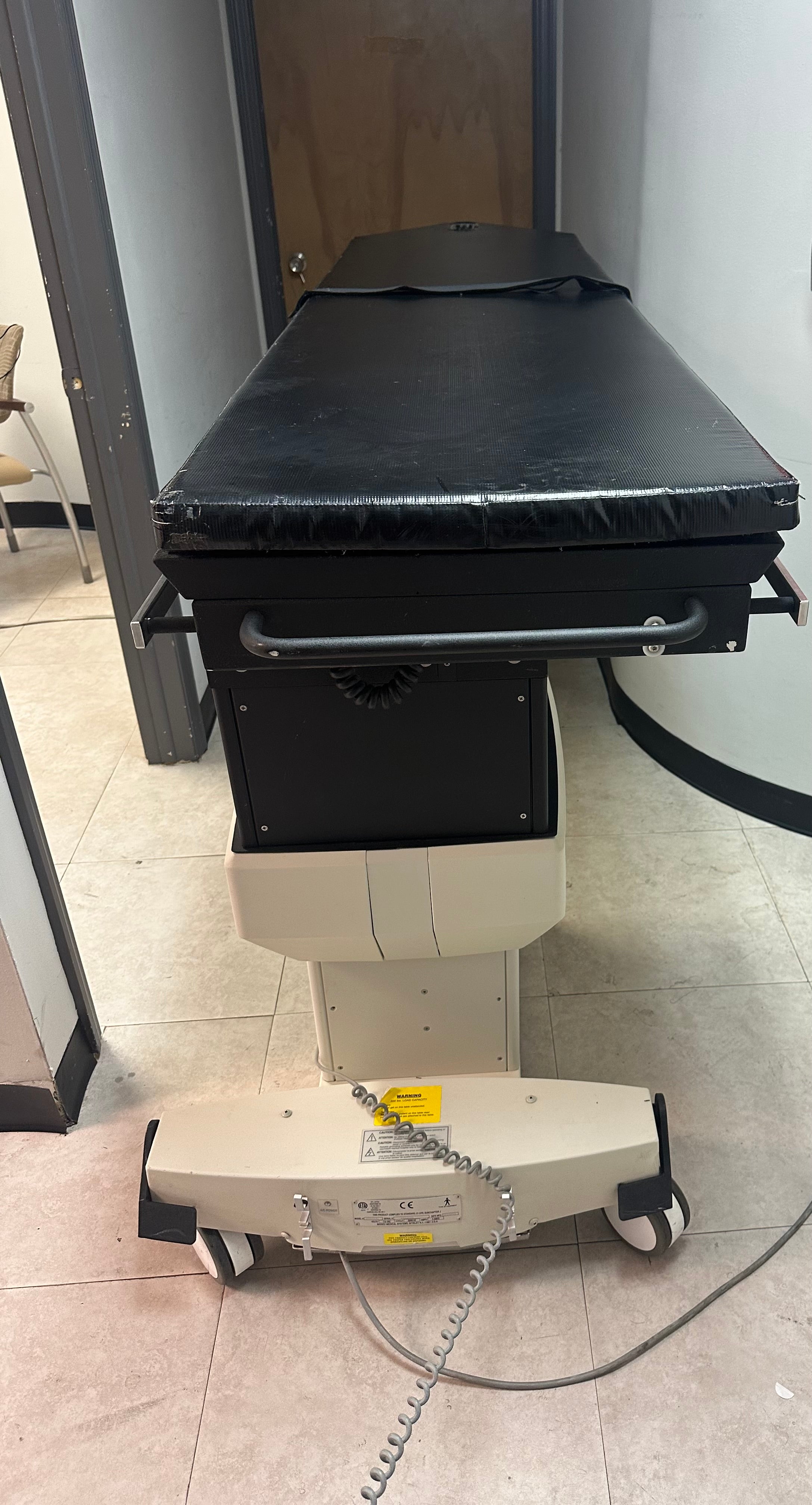

Table Base – Encased in stainless steel, easy to clean
-
Hand-Held Controller – For convenient positioning
-
Patient Capacity – 500 lb
-
Low Profile Base – For unrestricted C-arm movement
- Accessory Rails
Specifications:
- Dimensions:
- Overall: 97" l x 26" w (246 x 66 cm) with OR accessory rails
- Tabletop: 97" l x 24" w (246 x 61 cm) – Classic contoured
- Radiolucent Area: 75" l x 24" w (191 x 61 cm)
- Motions:
- Height: Adjustable from 32" to 42" (81 to 106 cm)
- Tabletop X Motion (head-to-toe float)
- Tabletop Y Motion (side-to-side float)
- Controls:
Hand Control: Activates height
Hand Control: Releases X-Y Tabletop motions
- Accessory Rails
- Patient Capacity: 500 lb (227 kg)
- Shipping Weight: 800 lb (363 kg)
- Power: 115 VAC
