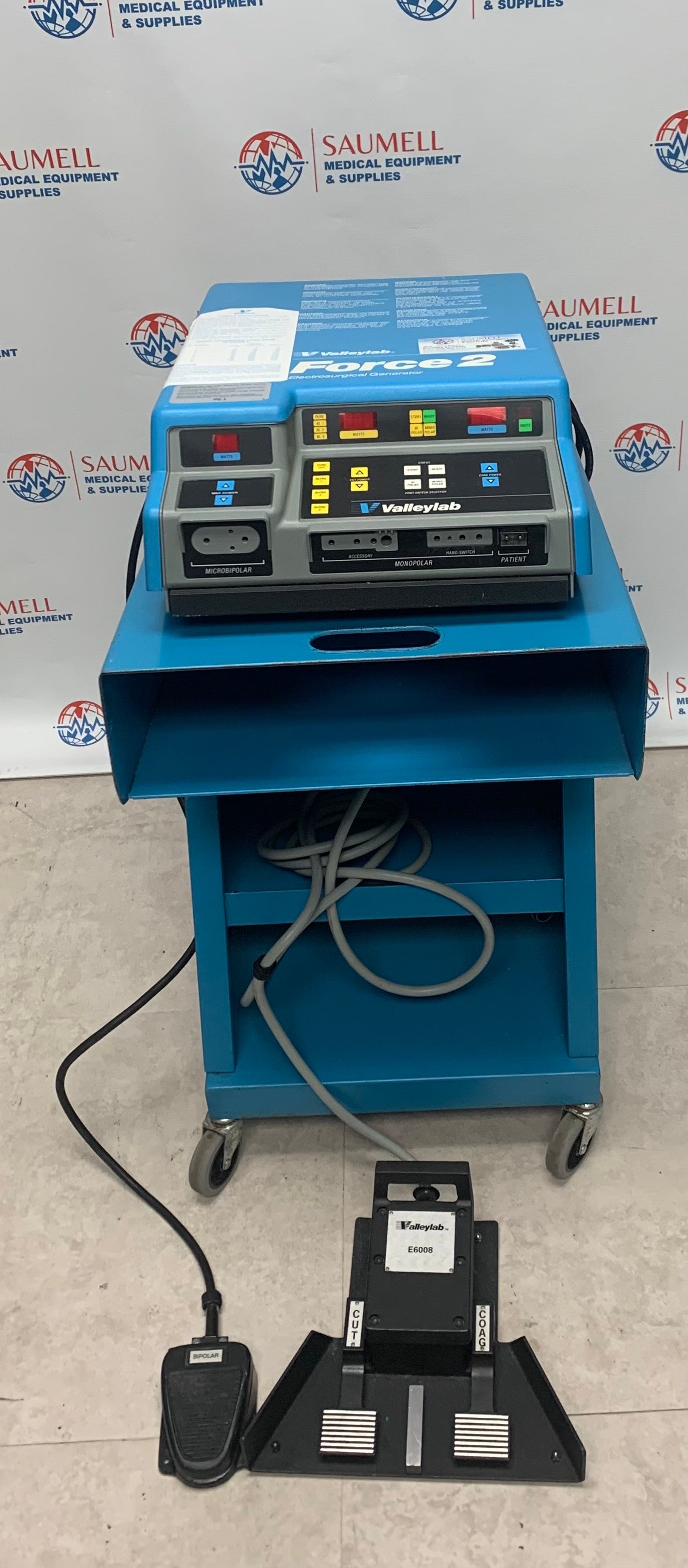

Valleylab Force 2 (Preowned)

Valleylab Force 2 (Preowned)

Features:

The Valleylab Force 2 electrosurgical unit is a long-standing workhorse and provides cutting and coagulation in monopolar or bipolar outputs. The generator has audible and visual alarms, including REM™ Fault Indicator. The REM™ (Return Electrode Monitoring) is standard. 300 watts is available for output in the cut setting. A monopolar foot switch is included

High Power Digital ESU.

High performance capabilities in a multipurpose generator

Provides flexibility through varying degrees of homeostasis

Operator can choose one of three preset modes: simultaneous independent coagulation, low voltage coagulation and Valleylab REM safety, which substantially reduces the risk of patient burns at the return electrode site

Valleylab Force 2 Specifications

Dimensions

Height: 8 in (20 cm)

Width: 13 in ( 33 cm)

Depth: 12 in (53 cm)

Weight: 23 lbs. (10.4 kg)

Output Waveforms

Cut: 510 kHz sinusoid

Blend 1: 510 kHz sinusoidal bursts at 50% duty cycle recurring at 31 kHz

Blend 2: 510 kHz sinusoidal bursts at 37.5% duty cycle recurring at 31 kHz

Blend 3: 510 kHz sinusoidal bursts at 25% duty cycle recurring at 31 kHz

Coag: 510 kHz damped sinusoidal bursts with a repetition frequency of 31 kHz Low Voltage 510 kHz sinusoidal bursts at 25%

Coag: duty cycle recurring at 31 kHz

Bipolar: 510 kHz sinusoid Output power changes by less than 5% or 5 watts, whichever is greater, as the line voltage varies from 85-135 volts (into a 300 ohm load).

Output Characteristics

Pure Cut: 300 watts

Blend 1: 250 watts

Blend 2: 200 watts

Blend 3: 150 watts

Coag: 120 watts

Low Voltage Coag: 99 watts

Bipolar: 70 watts
